Description

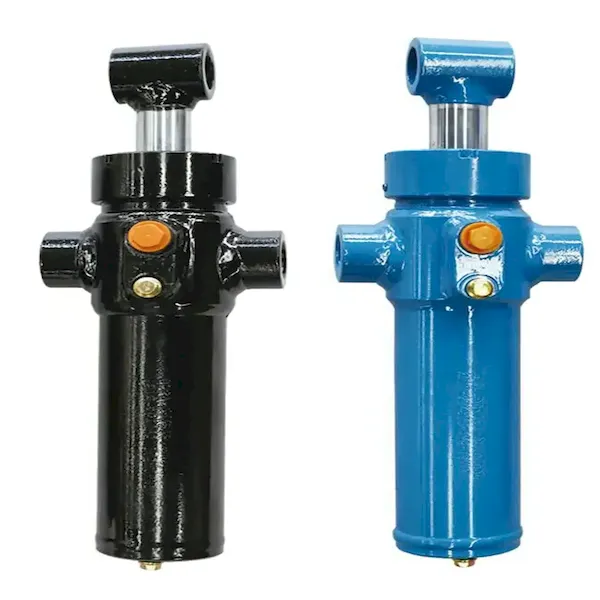

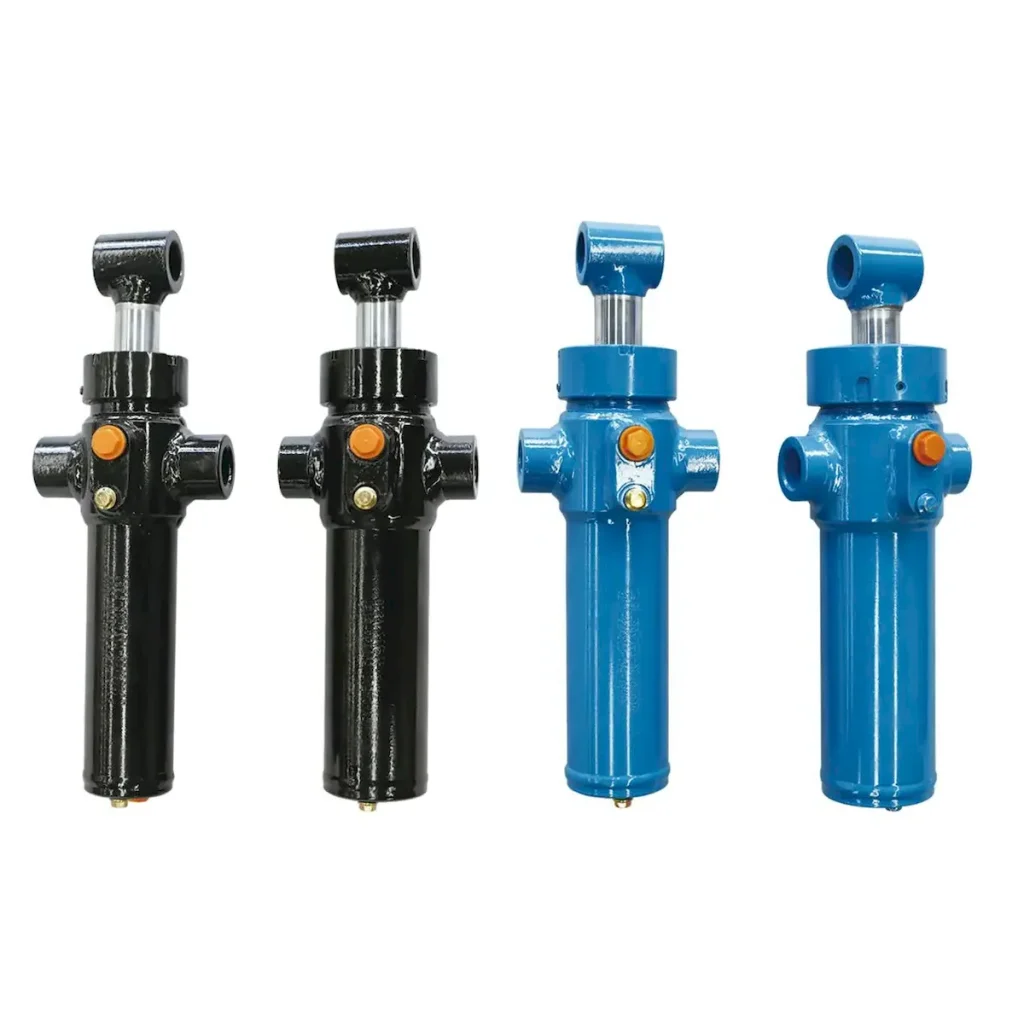

Main and auxiliary lifting cylinders for no-till machines are engineered for conservation tillage equipment, delivering robust lifting performance to enable efficient operations while preserving soil integrity. Constructed from high-strength alloy steel with 2500-3500 psi pressure ratings, they support primary load handling by the main cylinder and stabilization by the auxiliary, ensuring stability in sloped or dusty fields. Customers can select specs like HSG70/36×195-165 model based on load and stroke needs for seamless integration, minimizing downtime, and optimizing crop yields.
Specifications of Main And Auxiliary Lifting Cylinders For No Tillage Machines
| Specification and Model | Cylinder Diameter (mm) | Rod Diameter (mm) | Stroke (mm) | Installation Distance (mm) | Remarks |
|---|---|---|---|---|---|
| HSG70/36×195-165 | 70 | 36 | 195 | 165 | Main oil cylinder |
| HSG60/36×195-165 | 60 | 36 | 195 | 165 | Auxiliary oil cylinder |
| HSG80/38×200-165 | 80 | 38 | 200 | 165 | Main oil cylinder |
| HSG70/38×200-165 | 70 | 38 | 200 | 165 | Auxiliary oil cylinder |
| HSG90/40×200-155 | 90 | 40 | 200 | 155 | Main oil cylinder |
| HSG80/40×200-155 | 80 | 40 | 200 | 155 | Auxiliary oil cylinder |
| HSG70/36×145-392.5 | 70 | 36 | 145 | 392.5 | Main cylinder (with spring) |
| HSG60/36×145-392.5 | 60 | 36 | 145 | 392.5 | Auxiliary cylinder (with spring) |
| HSG40/25×250-417 | 40 | 25 | 250 | 417 | Bi-directional rodless double-acting cylinder |
| TGE-30×155-285 | 35 | 30 | 155 | 285 | Unidirectional rodless double-acting cylinder |
*Other sizes can be customized.
Operating pressure: 2500-3500 psi;
Material: High-strength alloy steel with phosphating.
ISO compliant.
Key Features
Superior Load Capacity: 60-90mm bores support >5000lbs, engineered design, ideal for clay/sloped ops, no depth drift.
Rugged Construction: Alloy steel + chrome rods, 5000+hr life, robotic welds minimize flaws for harsh impacts.
Smooth Operation: Low-friction seals, cushioning for ±1mm sync, boost seeding uniformity.
Broad Compatibility: Pin mounts fit John Deere/Great Plains no-tillers, plug-and-play.
Simple Install/Maintenance: Modular, while user-friendly mounting via standard clevis pins allows 30-minute installs, including line connections and leak tests, reducing downtime. Coatings cut debris buildup, slash costs.
Product Applications

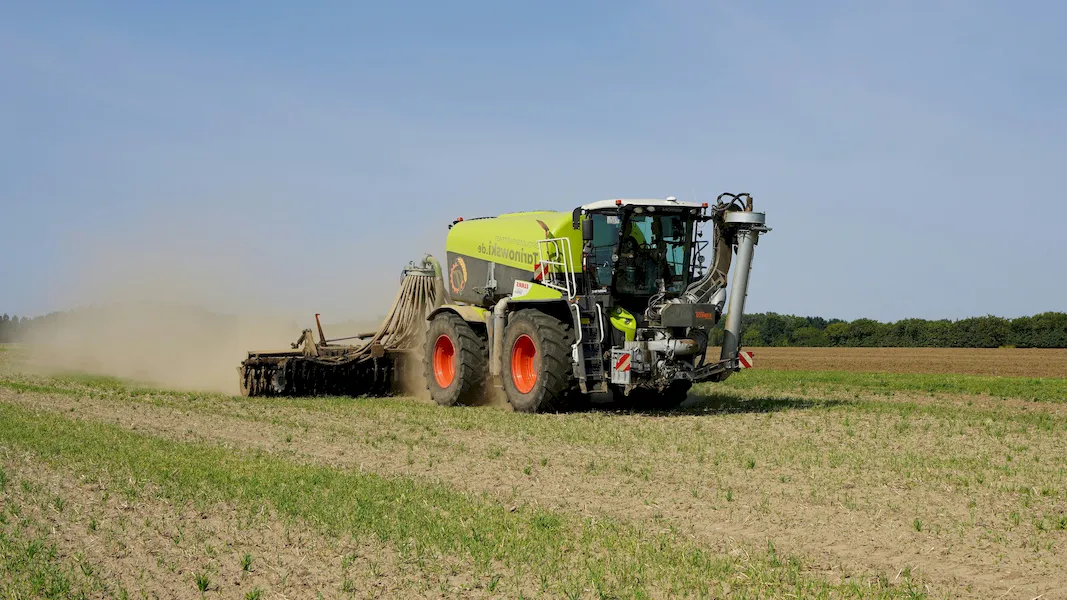

Used in no-till seeder finger clamps for corn/soy/wheat height adjustment. Aux spring clears residue fast; main prevents rollover on slopes. GPS auto-depth integration ups efficiency by 25%. Suits cultivators/residue managers, preserves soil, cuts erosion for sustainable farming.
In no-till planters, these cylinders adjust disc openers and seed meters for crops like corn and wheat, minimizing soil disturbance and retaining organic matter. On slopes, the main cylinder powers obstacle avoidance lifts, with the auxiliary preventing tip-overs for safety. In precision agriculture, sensor-linked operation automates depth control for uniform seeding. They also serve residue managers and cultivators, handling crop debris while suiting clay or sandy soils to improve water retention and root growth, promoting sustainable practices.
Maintenance and Troubleshooting
Weekly oil level check (ISO VG46);
Check hydraulic oil purity and level monthly and replace with agricultural-grade hydraulic oil to prevent seal contamination;
Clean the linkage and its exterior to avoid corrosion caused by debris;
Lubricate the pivots to inhibit wear;
Re-phase by holding full travel for 10 seconds for calibration.
Slow lift: Slow lift failures are often caused by air ingress or seal deterioration. First, bleed the system, then replace the O-rings and perform a pressure test. If leaks are present, secure the hoses and inspect the welds.
Leaks: Tighten the fittings/O-rings; perform a bypass air test.
Out of sync: Hold the lowering position for 30 seconds to reset; replace if necessary. Prevention: Avoid overloading and lubricate the pins quarterly.
Test Equipment:
Equipment Name:
1: Salt Spray Test Chamber
2: Chemical Analysis
3: Tensile Testing Machine
4: Rockwell Hardness Tester
5: Cleanliness Testing Machine
6: TH110 Rebound Hardness Tester
7: Coating Thickness Gauge
8: Pendulum Impact Test
Frequently Asked Questions (FAQs)
How do I select the specifications for a no-till main/auxiliary lift cylinder?
Load requirements: Main cylinder diameter 80mm or greater, stroke for depth; spring assist for 2BZM.
How do I install a no-till planter cylinder?
Install the base, align the pins, hose/test for leaks, calibrate – 20-30 minutes.
Lift cylinder maintenance intervals?
Oil monthly, full maintenance quarterly; enhanced maintenance bi-monthly.
Troubleshooting cylinder leaks?
External fixation, internal seal replacement, and pressure verification.
Compatible no-till equipment?
Finger planters, residue handlers, and multi-crop planters.
Do you offer product customization services?
Yes, we provide comprehensive customization services, including adjustments to dimensions, materials, and specifications based on customer-supplied drawings or samples. Our engineering team will evaluate requirements within 48 hours and deliver a detailed quote, ensuring customized products meet international standards such as ISO.
What is the delivery time for products?
Standard products are typically shipped within 7-15 business days after order confirmation, while customized orders may require 15-30 business days, depending on complexity and volume. We prioritize urgent orders and offer real-time tracking to guarantee timely delivery.
How do you ensure safe packaging for products during transit?
All products are packaged professionally with shock-resistant foam, inner wooden crates, and waterproof outer layers, adhering to international shipping standards. We commit to packaging that withstands long-distance impacts and environmental variations, with insurance options available to cover potential damage.
What payment methods do you accept?
We support multiple secure payment methods, including bank transfers, credit cards, PayPal, and letters of credit (L/C). All transactions are processed through encrypted channels for fund security, with flexible installment options to accommodate diverse customer needs.
How can I obtain technical support if there is an issue with the product?
Customers can contact our technical department via email or phone, and we commit to responding within 24 hours. Support includes fault diagnosis, repair guidance, and remote consultation to assist in swiftly resolving issues and resuming normal operations.
